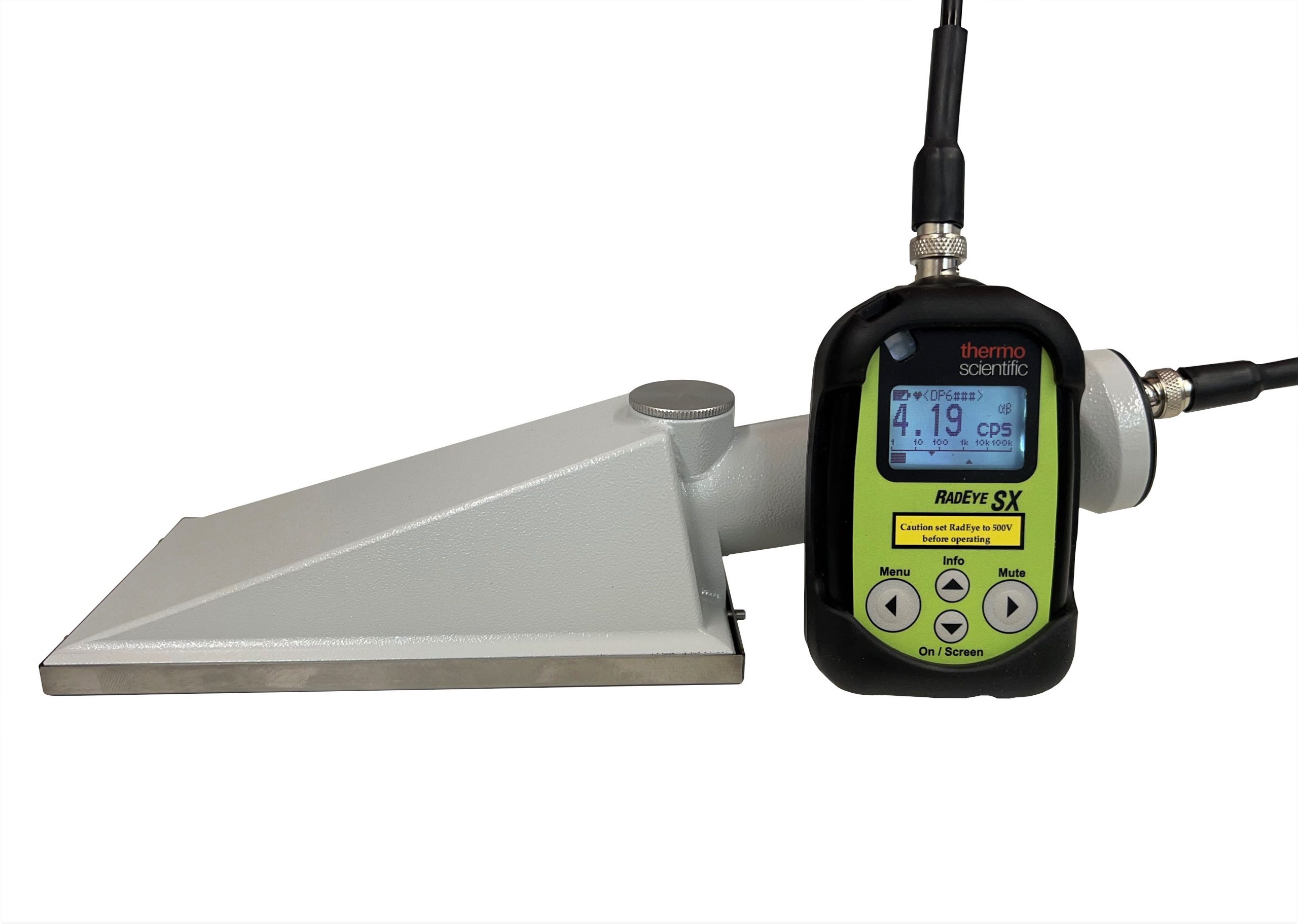

RadEye DP6-SX
STS RadEye DP6 Smart Probe Simulated Smart Contamination Probe

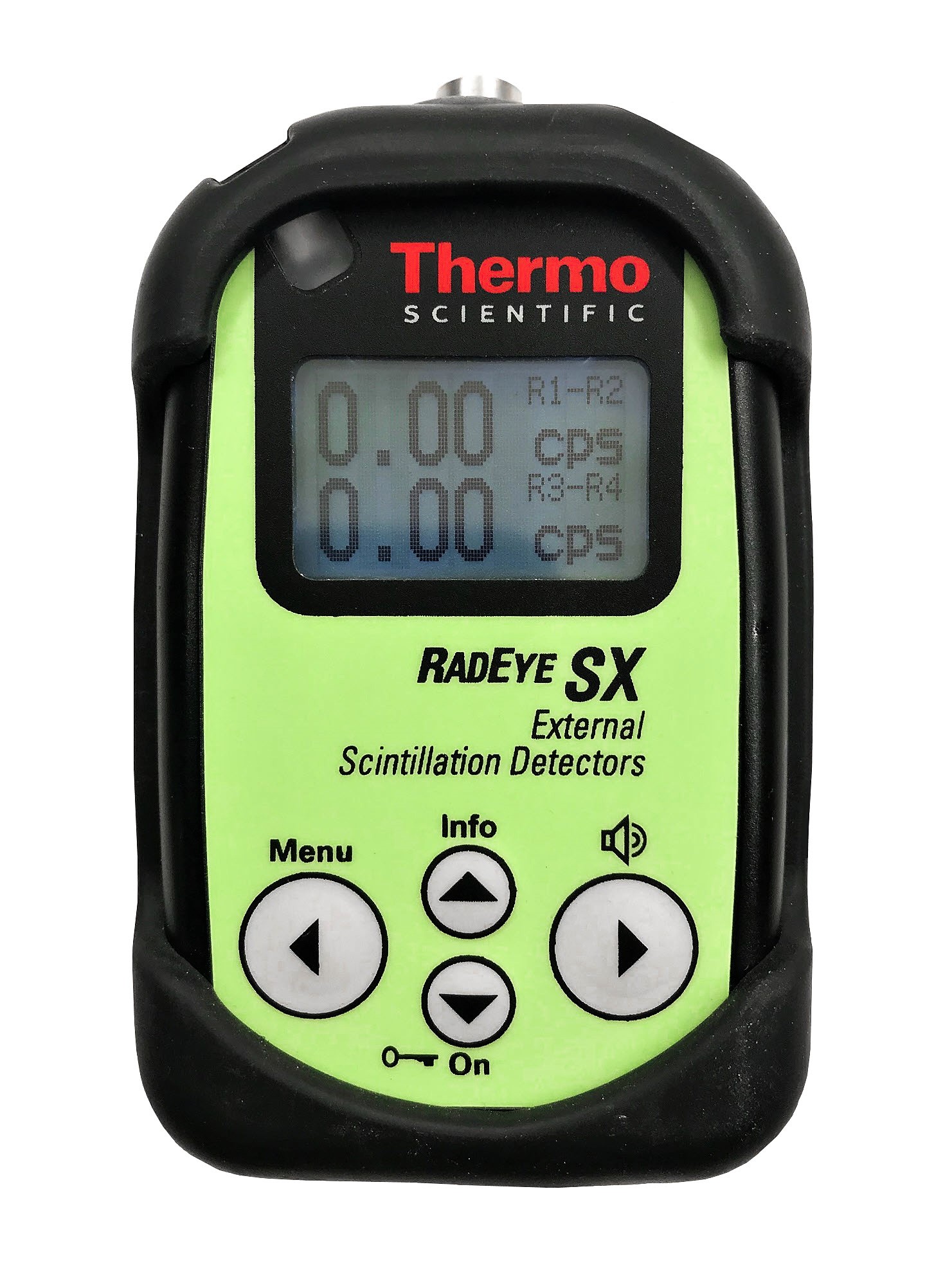

The STS RadEye Simulation Probes consist of a simulated probe housing STS electronics and cable connector so that it will operate with a real Thermo RadEye SX Meter.
-
Key Features
• Probe available in 2 variants:

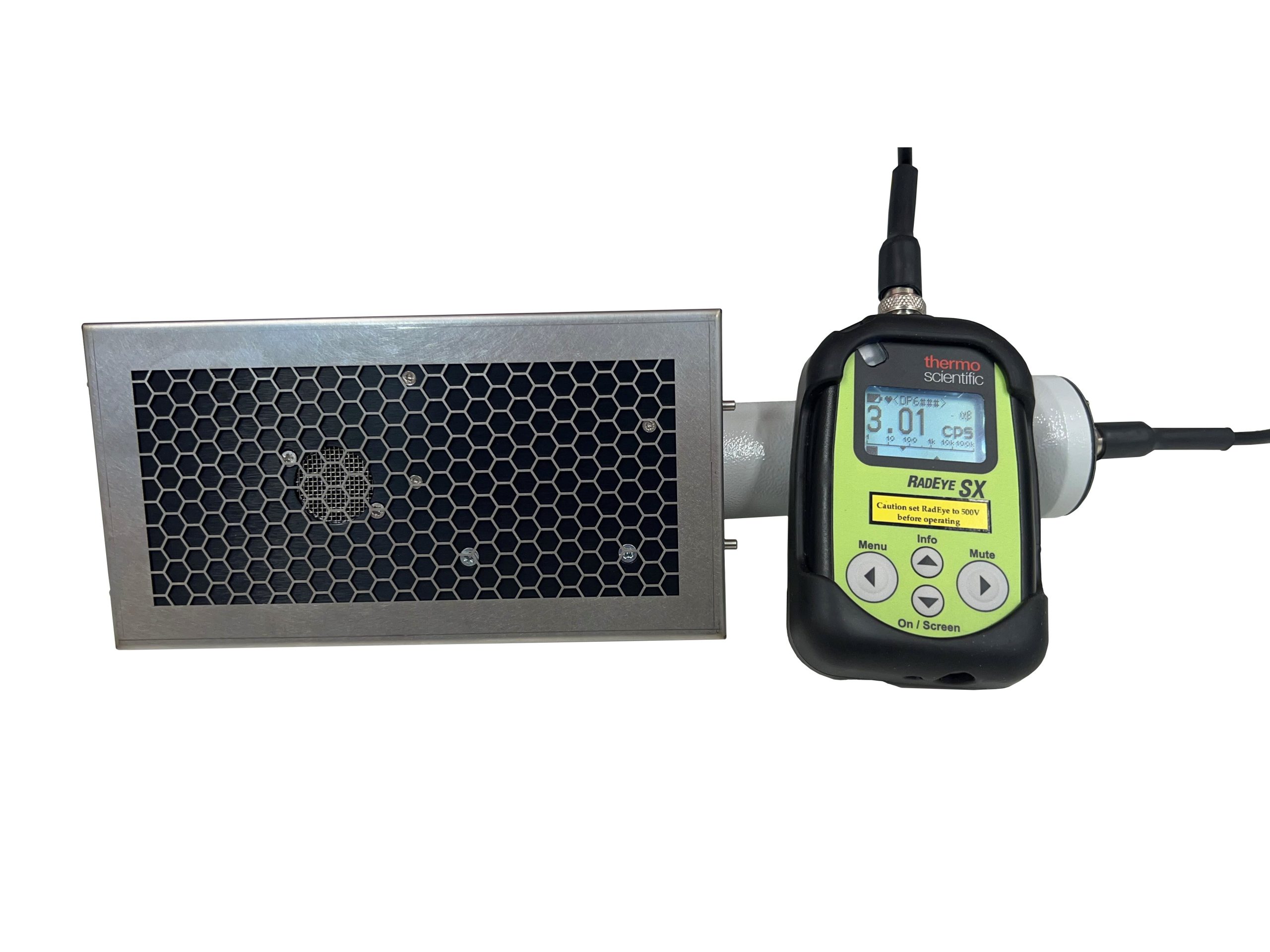

– Enlarged AP2 style probe
– Modified DP6 Probe
• Probe detects gas given off by STS simulant applied to surface to be monitored.
• The Smart Probe uniquely turns itself on when the instrument is switched on.
• Cross Contamination and decontamination easily demonstrated to Nuclear industry trainees.
• Contamination lasts at room temp for 1-2 hours but totally evaporates within 24 hours leaving the training area ready for the next exercise. -
Technical Specifications
• Display: Large, 4 digit, continuous, ranging LCD readout of count rate, dose rate, overflow, low battery & detector failure.
• LED: Flashing count rate indication.
• Audio: Piezo electric element synchronized with count LED.
• Units: Counts per second (cps) or counts per minute (cpm) and μSv/hror mR/hr.
• Controls: 3 key keypad with positive feedback for ON/OFF, key combinations to select count rate/dose rate unit displays.
• Power: External 9VDC/Standard 9V alkaline battery -approx 50 hrs continuous use with speaker off. Automatic battery check under full load.
• Detector: 1.75″ Pancake GM tube -LND73118 or equivalent.
• Count Range: 0 -42,000 cps.
• Sensitivity: Approximately 5.8 cps/μSv/hr(58 cps/mR/hr) -137Cs.
• Measuring Range: 0.05mR/hrto 700mR/hr(0.05μSv/hrto 7000μSv/hr).
• Dimensions: 11cm x 6.7cm x 7.4cm (4.3″ x 2.6″ x 2.9″)
• Weight: 0.340 Kg (0.75 lbs) - Documentation
