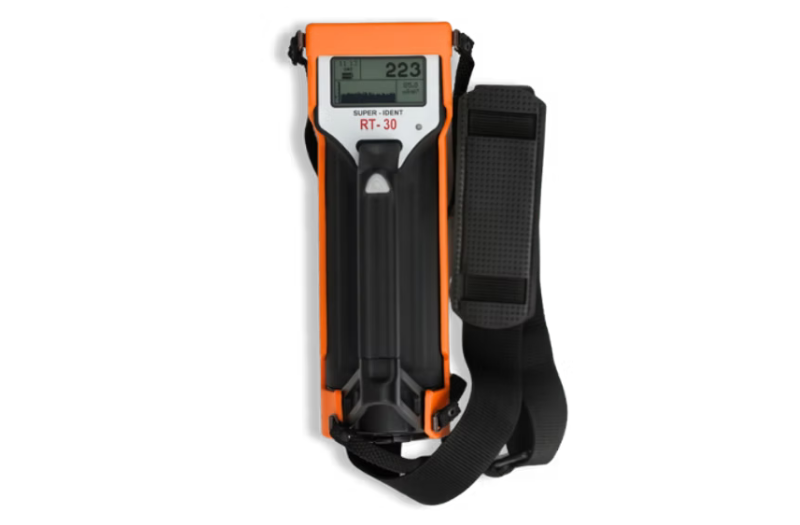

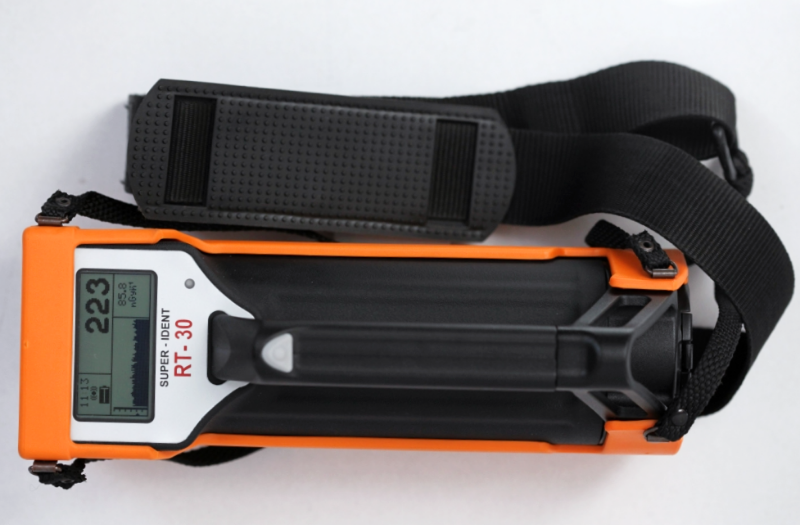

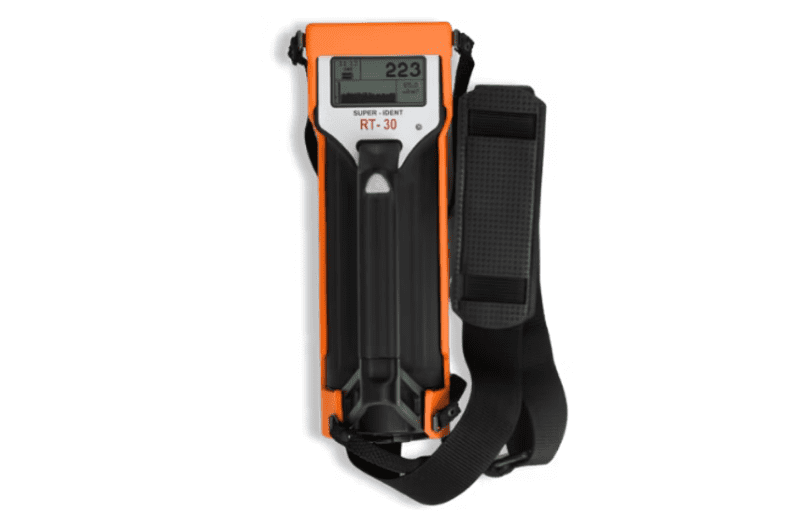

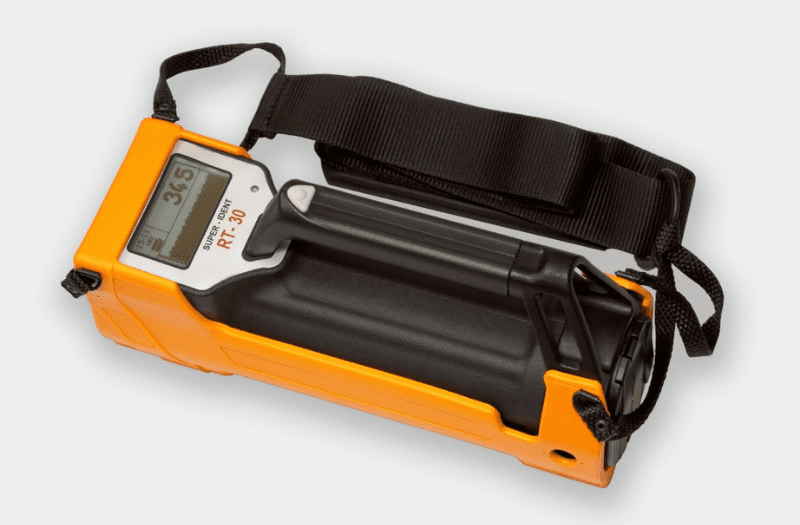

Georadis RT-30
Handheld Gamma ray Spectrometer

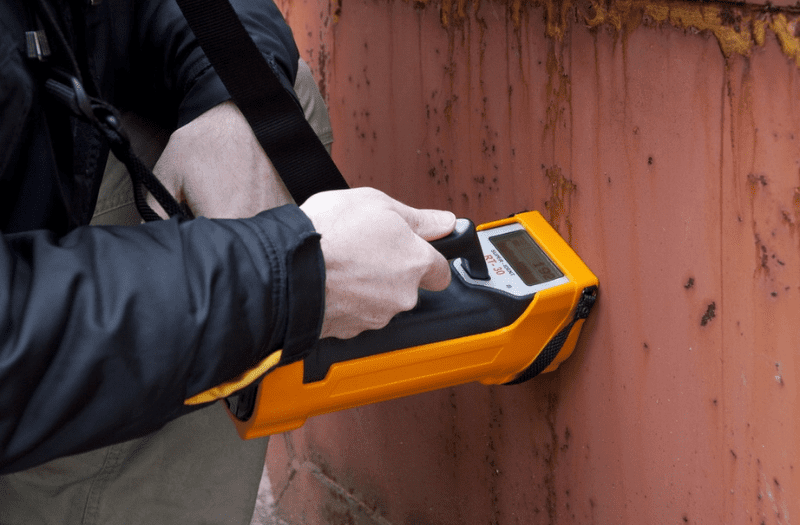

The RT-30 series introduces a new generation of compact handheld isotope identification instruments. The RT-30 integrates a radiation survey meter, dose meter and radionuclide identification device in a weather protected, lightweight and easy to use instrument. Typical applications include; Security and surveillance operations, Customs and Border protection, Hospitals, Nuclear facilities, Waste Recycling and Incineration plants and many others.
-
Key Features
• Highest Sensitivity
• Large 2” scintillator
• Fast and Reliable Isotope Identification
• Rugged and Compact design.
• One Button Operation
• Automatic Stabilisation on Natural background.
• USB and Bluetooth connections.
• Lightweight
• Weather protected
• Detects radiation sources, measuring dose rate and identifying neutrons.
• 1Gb internal memory.
• Removable protecting boot with shoulder strap.
• Optional Telescopic arm, Integrated GM tube or Neutron Detector. -
Technical Specifications
• (Detectors) : NaI/(Tl), Φ51 x 51 mm (2“ x 2“), 104 cm3 (6,3 in3), all models, Energy compensated GM tube with RT-30G and RT-30N He-3 Neutron tube with RT-30N.
• (Spectrometer) : 1024 channel MCA, bipolar pulse shaping, Energy range 20keV – 3,0 MeV
• (Scintilometer) : Sampling period 20/second Gamma ray sensitivity at 1m 160 cps/1MBq for Cs-137 75 cps/1MBq for Am-241 270 cps/1MBq for Co-60.
• (Dose meter) : Energy corrected dose rate for NaI detector, Extended range with GM tube 10 mSv/h (1R/hr).

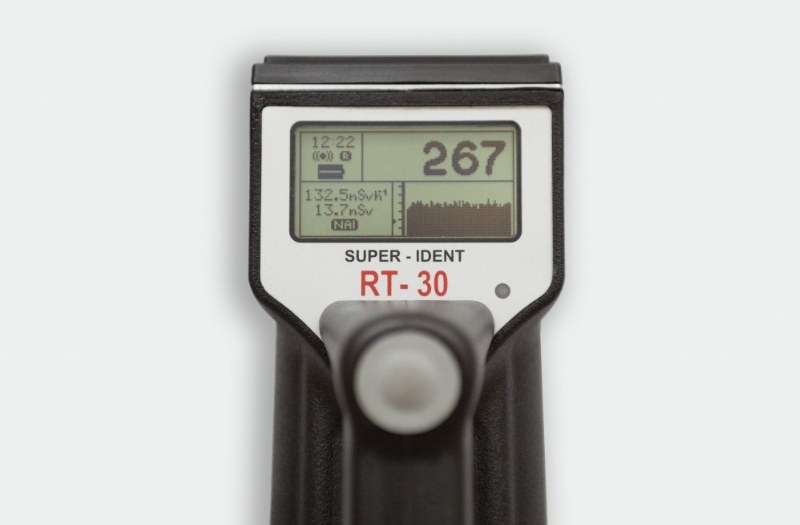

• (Display) : Graphic LCD 128×64 pixels 28 x 60 mm Automatic Backlight.
• (Acoustic indication) miniature piezo speaker, audio frequency is proportional to measured count rate.
• (Data Storage and Transfer) : 1 Gb memory for spectra, search profiles and dose USB 2.0 and Bluetooth 1.2 Class 2
• (GPS Support) : NMEA 0183
• (Environmental) : IP-65 Dust and Water resistant, Operating temperature range -10°C to +50°C RFI/EMF, Shielding complies with FCC(47 CFR part 15) for Class A CE Certification.
• (Size and weight) : LxWxH 260 mm x 81 mm x 96 mm (10,2“ x 3,2“ x 3,8“), Weight 2 kg (4,4 lb) including batteries. - Documentation
